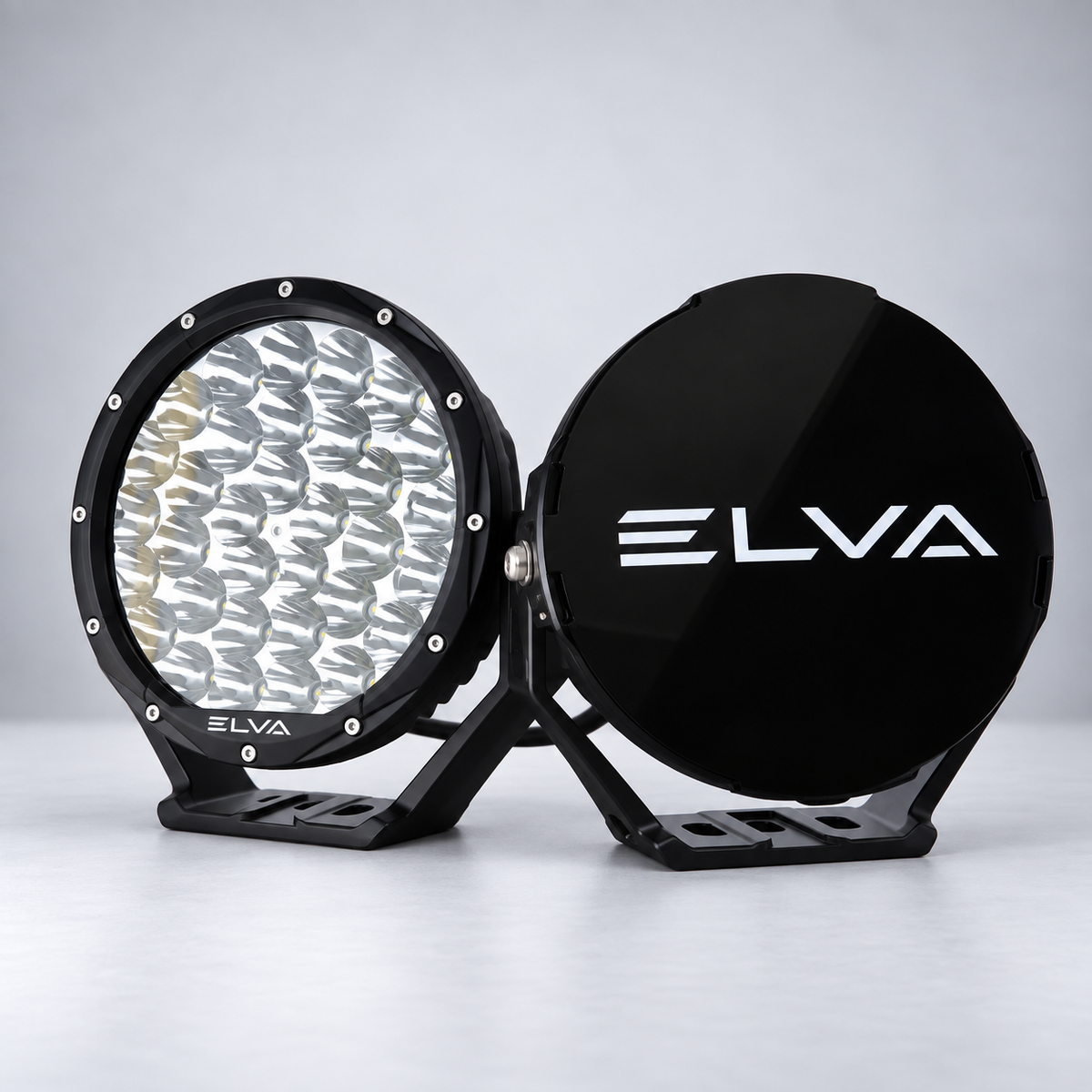

ELVA LIGHTING ORIGIN 9

Pair of premium 9-inch LED driving lights.

Technical specifications

• Dimensions (each light): 220 × 77.5 × 232.5 mm
• Protection: IP68 / IP69K
• Colour temperature: 6000K
• Operating temperature: -40°C to 80°C
• Storage temperature: -40°C to 60°C
• Operating voltage: 9–30V DC
• LEDs (pair): 66 × OSRAM 6W
• Current at 13.2V DC (pair): 23A
• Power at 13.2V DC (pair): 304W
• Effective lumens at 13.2V DC (pair): 17,600 lm
• 1 lux: 2.273 km

What’s included

• Pair of Origin 9 driving lights
• Blackout ELVA covers
• Plug-and-play wire harness (high-beam activated)
• H4 and HB3 high-beam adapters
• 2 Deutsch connector plugs
